P11100 Series High Q Tuning Inductors
P11100 Series High Q Tuning Inductors
View Items
P11100 Series High Q Tuning Inductors
Email This Page
Download PDF
Download PDF
Printable Page
P11100 Series High Q Tuning Inductors
Precision Inductors
/Asset/P11100_Series.jpg
Close Window

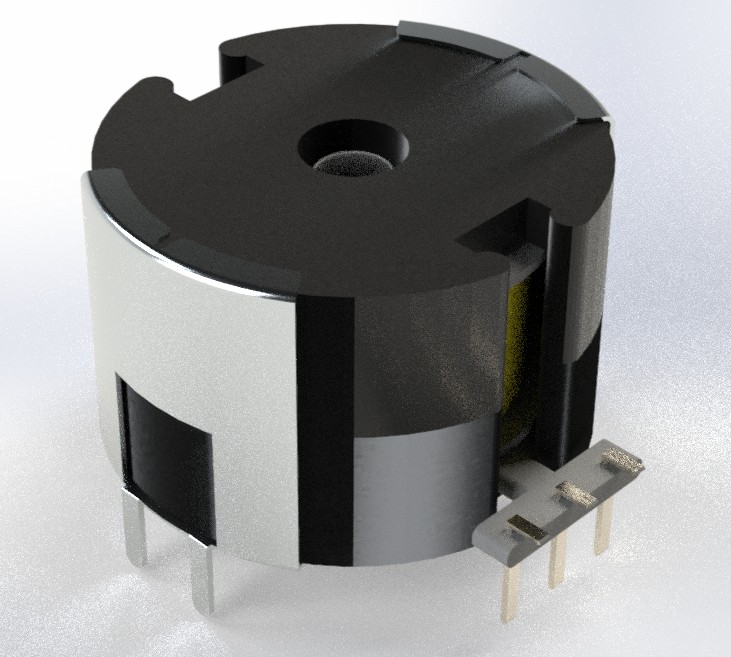

Designed for use in signal processing and tuning circuits
Delivers high-frequency performance
Ideal for applications requiring sensitive and reliable shunting response
Custom designs available
1 - 3 of 3
|
Results Per Page
25
50
100
200
|
View
|
Unit of Measure
Imperial
Metric
Both
1
Request Information
Compare Items
Item #
Inductance (1-3)
Inductance (3-5)
Minimum Quality Factor Q (100 kHz, 0.1 V)
Maximum Direct Current Resistance (DCR)
Length
Width
Height
P11100-01-09
P11100-01-09
/Asset/P11100_Series.jpg
Inductance (1-3)
N/A
1.0 mH
Inductance (3-5)
N/A
9.0 mH
Minimum Quality Factor Q (100 kHz, 0.1 V)
N/A
145
Maximum Direct Current Resistance (DCR)
N/A
1.02 Ohm
Length
N/A
36.8 mm
Width
N/A
27.9 mm
Height
N/A
18.3 mm
P11100-04-35
P11100-04-35
/Asset/P11100_Series.jpg
Inductance (1-3)
N/A
3.9 mH
Inductance (3-5)
N/A
35 mH
Minimum Quality Factor Q (100 kHz, 0.1 V)
N/A
70
Maximum Direct Current Resistance (DCR)
N/A
6.5 Ohm
Length
N/A
36.8 mm
Width
N/A
27.9 mm
Height
N/A
18.3 mm
P11100-09-80
P11100-09-80
/Asset/P11100_Series.jpg
Inductance (1-3)
N/A
8.9 mH
Inductance (3-5)
N/A
80 mH
Minimum Quality Factor Q (100 kHz, 0.1 V)
N/A
10
Maximum Direct Current Resistance (DCR)
N/A
13 Ohm
Length
N/A
36.8 mm
Width
N/A
27.9 mm
Height
N/A
18.3 mm
